Professional and powerful PC simulation, imaging, and data post-analysis software;

• 32/64PR, 32/128PR, 16/128PR, 16/64PR, models are optional;

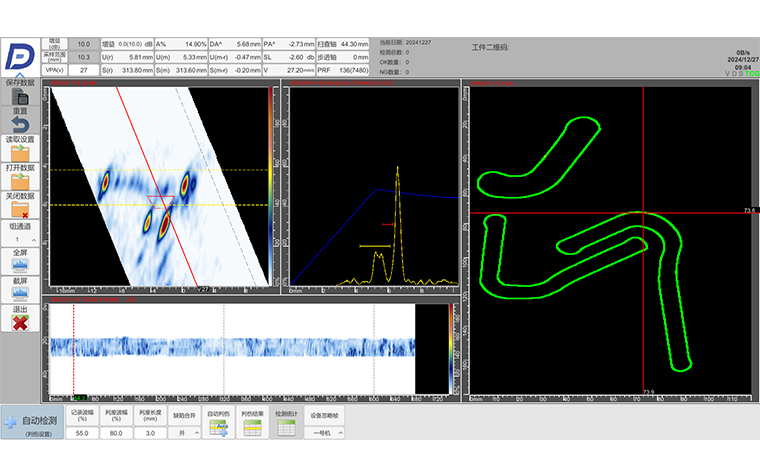

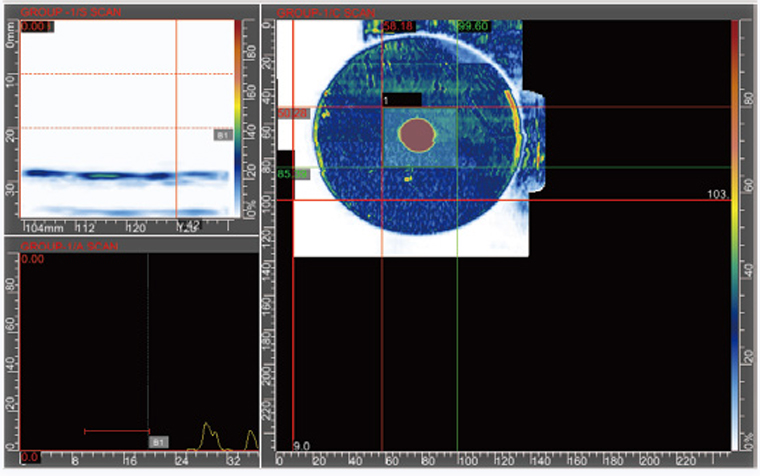

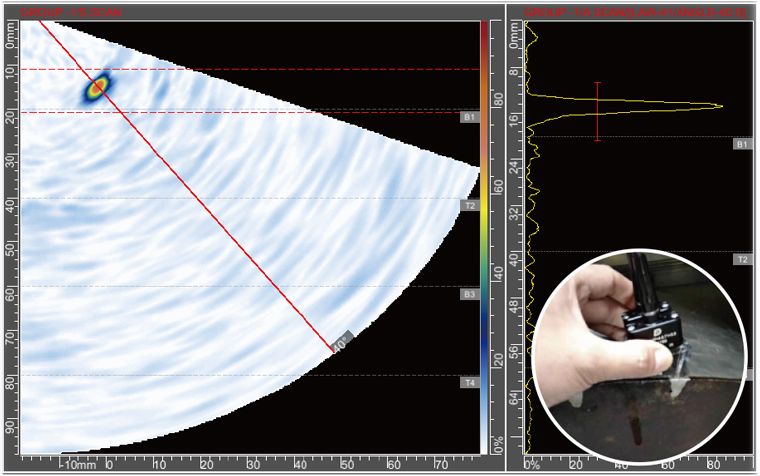

• A/B/S/C/3D and other display and combination display modes, full data encoder recording;

• Provide extended software and hardware interfaces and support secondary development;

• Can be used for various types of automated phased array ultrasonic testing system platforms;

• Support 3D TFM and 2D TFM technology, the maximum number of imaging points can reach 2048*2048, the imaging is clear, and the detection rate of subtle defects is greatly improved;

• 3D real-time process simulation;

• Various gate types, easy to remove interference signals;

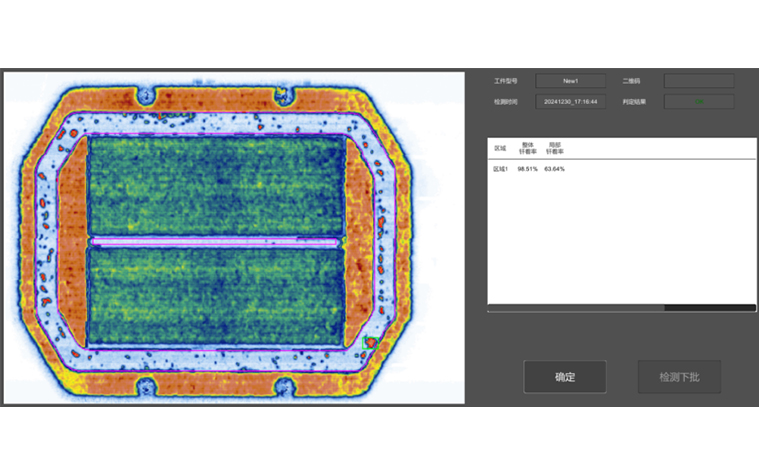

• Customizable intelligent defect analysis module, support weld defects, pipeline corrosion, composite plate delamination defects and other types of defects automatic capture analysis;

• Support pipe seat corner weld detection, weld cross-section map real-time update;
